Samway YL65

Samway YL-65  full automatic digital hydraulic hose crimping machine

Main advanatages of the YL-65 Hose Crimping Machine.

*Double elbow hydraulic hose up to 2'' 6SP

*Production Purpose up to 10000 pieces per day, High speed crimping design.

*Large opening crimping machine

*Foot pedal control release your hand

*Germany TUV CE approved

*Well-konwn parts used: Parker Valve, Eaton Switch and buttons, SIEMENS motor, Rexroth Pump, NOK seals etc.

*Quick change tool and die rack embeded into the system as standard

*Finn power F120 compatible ( die sets and quick change tool system , make a swap simple )

*Professional design aimed for more than 20 years of production time.

Details of the YL65  , pictures are real from the warehouse, no photoshop edited or processed by any image software.

Contact Samway samwaysales@gmail.com for more details and purchase inofmration.

Main Specification

Samway YL65

Crimping range in inch

2 inch 6SP hydraulic hose R13 and R15

Crimping Range

4-87mm

Opening Max.

+65

Master die Length

100mm

Die sets type

Compatible to Finn Power P32 die sets (FP120 die sets )

Die sets included as standard

10 13 16 19 22 26 30 39 45 52 57 64 69 74 78

Motor

7.5 KW by SIEMENS

Voltage

220V/400V/440/480V 3 phase 50/60hz

Crimping Force KN

2800

Crimpings Per Hour

2400

Control

Digital control with four modes: automatic, semi-automatic, foot pedal control, back stop control, hold time setting.

Sensor

Made in Germany

Hydraulic System

Parker Valve, Rexroth Pump etc.

Noise Level

65

Protection Class

IP54

Length*Width*Height mm

860*1000*1600

Weigth KG

1200





More YL-65 pictures for your reference.


YL65 hose crimping machine hose crimper, best for the serial production in hydraulic hose assembly.

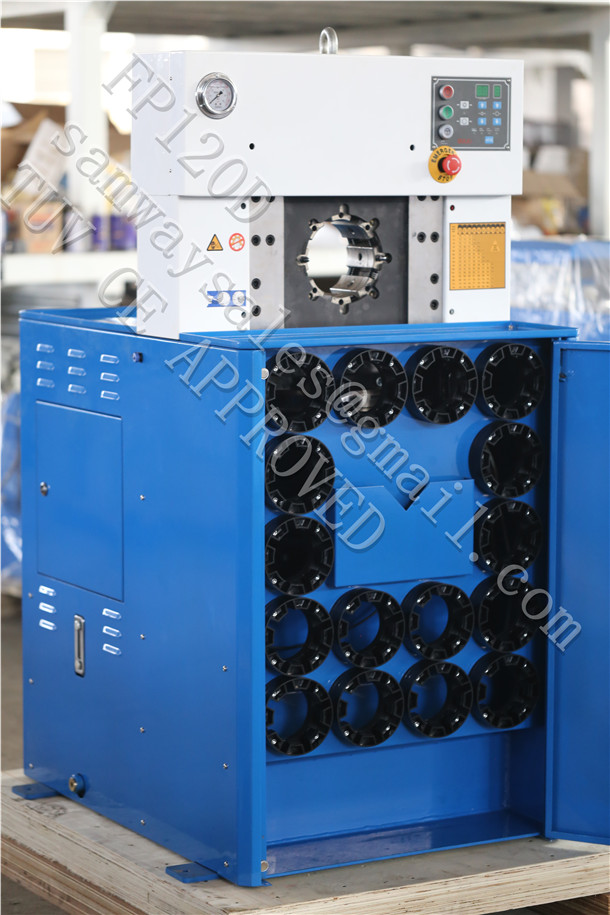

Samway YL65 come with 17 die sets die holder for all die sets stored in good place.


Samway FP120D is manufactured strictly under the ISO9001 2008 quality system and also approved by TUV CE.


STANDARD DIES SET FOR YL65 ( Die length and die internal diameter )

Code 32 32 32 32 32 32 32 32
Dimension 10 13 16 19 22 26 30 39
Crimping Range 10-13 13-16 16-19 19-22 22-26 26-30 30-39 39-45
Length 55 55 55 55 55 55 75 75



Code                            32 32 32 32 32 32 32
Dimension 45 52 57 64 69 74 78
Crimping Range 45-52 52-57 57-64 64-69 69-74 74-78 78-87
Length 90 90 100 100 100 110 110



Please feel free to contact Samway for this model Samway YL65 model,now this model is in stock, immediate delivery available.

samwaysales@gmail.com for more information.
