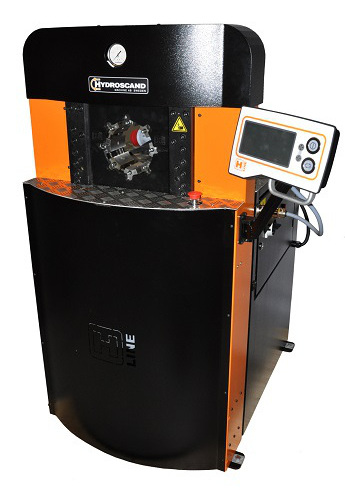

H120TS   Crimping Machine

Hydroscand - H120TS, With this large high volume crimper the big depot or OEM assembly plant is very well equipped. With 280 tons of force and a 155 mm opening enables a wide range of crimping applications. With the TS (Touch Screen) control the functionality of the press is wide.

TECHNICAL DATA
Crimping range in mm: 10 - 87 mm
Crimping range in inches: 0,39 - 3,42
Crimping force in metric tons: 280
Crimping force in kN: 2800
Maximum hose size in inches: 2"
Die Set: H 32
Maximum travel of dies in mm: 70 mm
Master die Diam. /Lenght in mm: 99 / 97
Master die Diam. /Lenght in inches: 3,90 / 3,82
Machine control: Advanced Touch Screen control
Motor size in kW 3 phase: 5,5 kW
Motor size in HP 3 phase: 7,5
Colour: Black / Orange

DESIGNATION
H120TS: 9028-00-18

DIE SET
H32-10: 9060-32-10
H32-12: 9060-32-12
H32-14: 9060-32-14
H32-16: 9060-32-16
H32-19: 9060-32-19
H32-22: 9060-32-22
H32-26: 9060-32-26
H32-30: 9060-32-30
H32-34: 9060-32-34
H32-39: 9060-32-39
H32-45: 9060-32-45
H32-51: 9060-32-51
H32-57: 9060-32-57
H32-63: 9060-32-63
H32-69: 9060-32-69
H32-74: 9060-32-74
H32-78: 9060-32-78
