H24DC  Crimping Machine

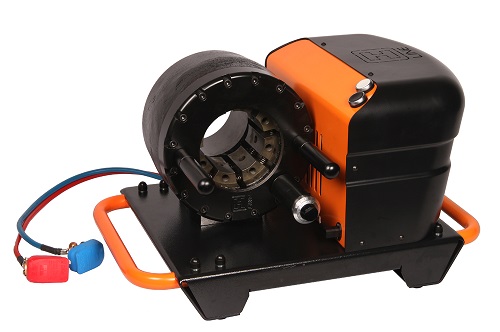

Hydroscand - H24DC, Mobile Crimper

A 12/24 volt operated crimper suitable for usage in vans or to be connected to a car battery. With this robust crimper you can crimp up to 1 ½” hoses wherever you are.

TECHNICAL DATA
Crimping range in mm: 10-61 mm
Crimping range in inches: 0,39 - 2,40
Crimping force in metric tons: 140
Crimping force in kN: 1400
Maximum hose size in inches: 1 ½”
Die Set: H24
Maximum travel of dies in mm: 25 mm
Master die Diam. /Lenght in mm: 84 / 80
Master die Diam. /Lenght in inches: 3,31 / 3,15
Machine control: Micrometer Screw
Motor size in kW 12V / 24V: 1,6 kW / 2,2 kW
Motor size in HP 12V / 24V: 2,1 / 3,0
Colour: Black / Orange

DESIGNATION
H24DC 12V: 9028-00-12
H24DC 24V: 9028-00-13

DIE SET
H20-10: 9063-20-10
H20-12: 9063-20-12
H20-14: 9063-20-14
H20-16: 9063-20-16
H20-19: 9063-20-19
H20-23: 9063-20-23
H20-27: 9063-20-27
H20-31: 9063-20-31
H20-36: 9063-20-36
H20-41: 9063-20-41
H20-47: 9063-20-47
H20-54: 9063-20-54
