MARKMAN II  Accessories

Hydroscand - MarkMan II, Marking Systems

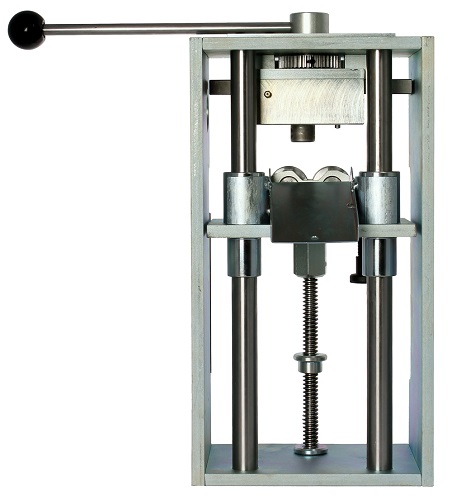

A manually driven machine for marking ferrules (before swaging). The machine is suitable for ferrules from diameter 3/16" up to 2" and you can choose between 2 and 3 row type holder and 3 or 4 mm type height. There´s also a special marking wheel available.

TECHNICAL DATA
Ferrules dimension: 3/16" - 2"
Ferrules diameter OD: min. 13 mm - max. 85 mm
Colour: Zinc plated

DIMENSIONS
Length: 500 mm
Width: 200 mm
Height: 500 mm
Weight: 28 Kg

DESIGNATION
MarkMan II: 9031-10-01

ACCESSORIES
Type case (4x8x18mm for 9031-10-03/10-04): 9031-00-04
Type case (3x6x19mm for 9031-11-03/11-04): 9031-12-04
Type print holder 2 lines (4mm, 12 types): 9031-10-03
Type print holder 3 lines (4mm, 12 types): 9031-10-04
Type print holder 2 lines (3mm, 12 types): 9031-11-03
Type print holder 3 lines (3mm, 12 types): 9031-00-04
Type print holder special on customer request: 9031-10-07
QC adapter for type print holder 3 and 4 mm: 9031-10-05
Special marking wheel: 9031-00-06
QC adapter marking wheel: 9031-10-06
