MIDICUT 5-50P  Cutting Machine

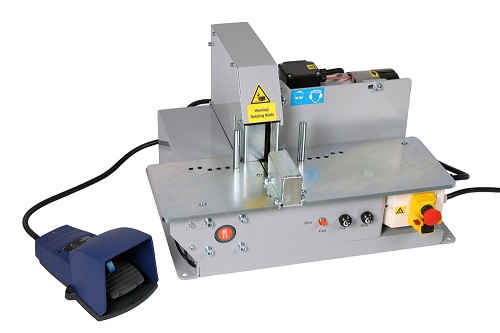

Hydroscand - MidiCut 5-50P Hose Cutting Machine

MidiCut 5-50P is a pneumatically operated hose cutting machine for the medium sized workshop or the small serial production. The machine is very safe and easy to use.

TECHNICAL DATA
Hose capacity 1-2-4 layers: 3/16" - 2"
Hose capacity 4-6 spiral: 1/4" - 1 1/4"
Max hose diameter OD: 75 mm
Motor: 4,3 kW
Voltage: 230/400V/16A/50Hz
Diameter (blade) External: 300 mm
Diameter (blade) Internal: 50 mm
Air pressure: min. 4 bar
Hose connection for smoke evacuation system: 50 mm
Colour: Light Gray

DIMENSIONS
Length: 705 mm
Depth: 570 mm
Height: 385 mm
Weight: 80 Kg

DESIGNATION
MidiCut 5-50P: 9031-00-03

SPARE PARTS
Cutting blade HSM 300x3x50 Smooth: 9003-00-04
Cutting blade HSM 300x3x50 Toothed: 9003-00-05
Cutting blade 300x3x50 TS: 9003-01-02
