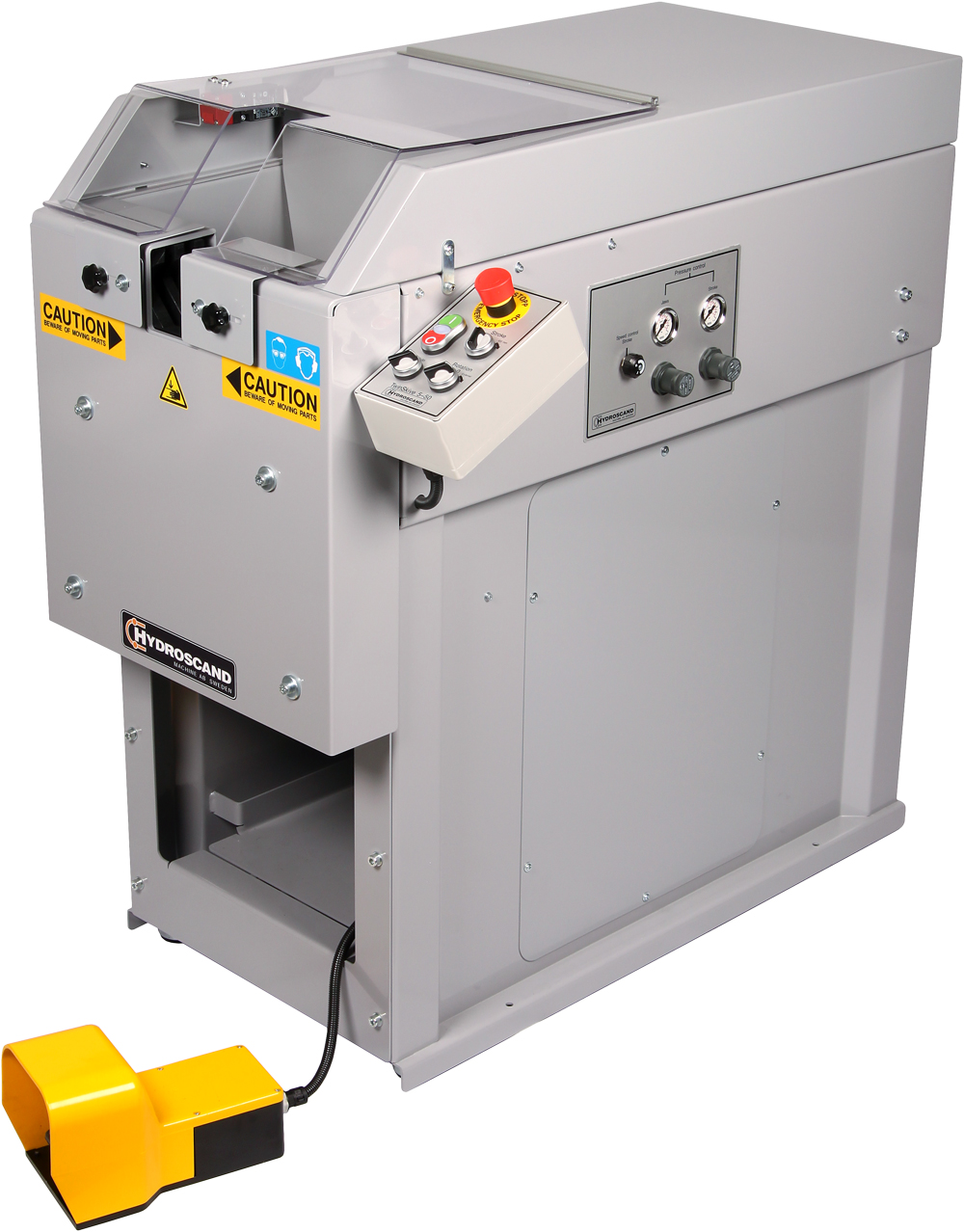

PowerSkive 5-50, Skiving and Inserting Machine

A semi-automatic PLC-controlled skiving machine.

Quick, reliable and easy to use. A centering system
assures that the hose is correctly aligned during
the entire skiving and inserting process.
PowerSkive 5-50 can also be used for inserting fittings.

Advantages
- PLC-controlled
- Eliminates work-related injuries
- Great increase of production capacity
- Automatic self-centering system
- Adjustable speed
- Adjustable pressure
- Waste collection for easy disposal

TECHNICAL DATA
Hose capacity: 3/16" - 2"
Skiving and Push-on capacity: 400 - 600 pcs/hour
Motor: 0,75kW
Voltage 3-phase: 230/400V/16A/50Hz
Velocity: 550/700 rpm
Air pressure: min 6 bar
Colour: Light Grey

DIMENSIONS
Length: 1 200 mm
Width: 680 mm
Height: 1 080 mm
Weight: 132 Kg

DESIGNATION
PowerSkive 5-50 0,75kW 550rpm: 9082-03-00
PowerSkive 5-50 0,75kW 700rpm: 9082-03-01

ACCESSORIES

Push-on tool for straight and elbow fittings: See separate specification
