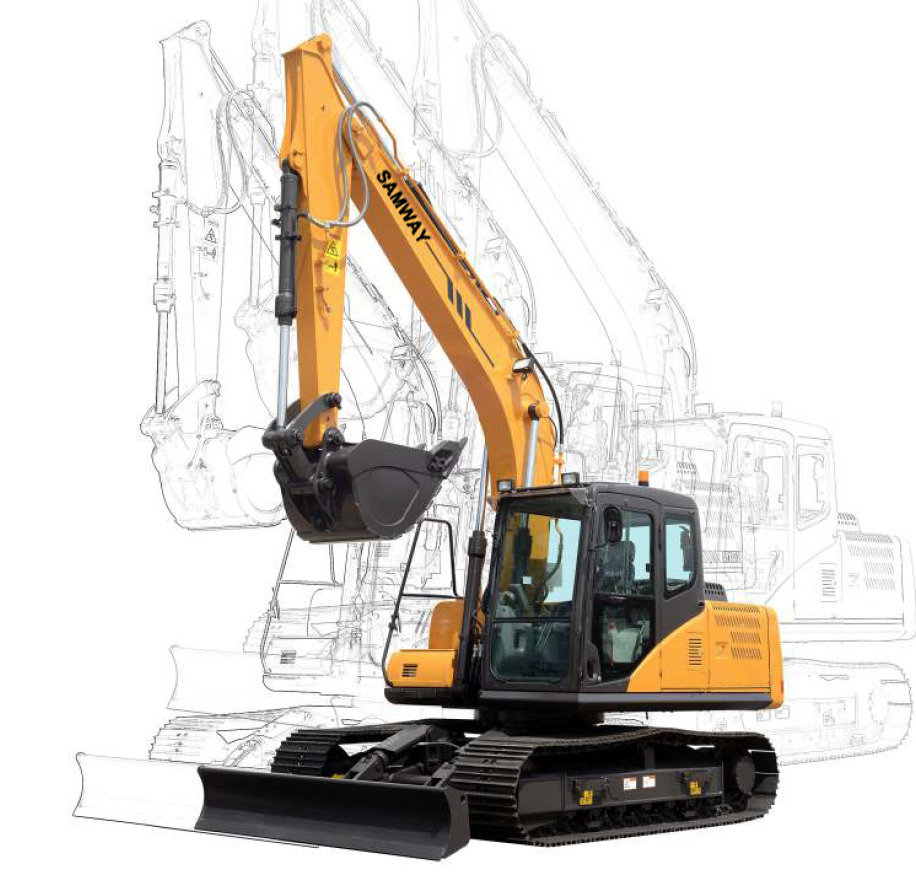

S135C SAMWAY Mae Jac codi baw hydrolig
Price:
sales@samway.com
SKU:
S135C SAMWAY Mae Jac codi baw hydrolig
Brand:
Weight:
N/A
Availability:
S135C SAMWAY Mae Jac codi baw hydrolig
Product Description
S135C SAMWAY Mae Jac codi baw hydrolig
• Peiriant: Isuzu AJ-4JJ1X, haen 3
• Dylunio newydd cynyddu effeithlonrwydd a chynhyrchiant tra'n lleihau'r tanwydda ddefnyddir
• Pedwar gwaith safonol ddulliau ar gyfer gwahanol amodau safle swyddi
• Siasi wedi'u hailgynllunio ar gyfer sefydlogrwydd rhagorol
Ymhlith nodweddion safonol
• Hydroleg ddwyffordd, llafn lenwi ac yn rheoli patrwm newid falf i gynyddu cynhyrchiant ac amlochredd
DIMENSIYNAU CYFFREDINOL
| Safon |
Metrig |
||
| A | Darn trafnidiaeth |
25' 3" |
7700 mm |
| B | Lled trafnidiaeth |
8' 8" |
2650 mm |
| C | Uchder trafnidiaeth |
9' 3" |
2815 mm |
| D | Lled strwythur uchaf |
8' 2" |
2490 mm |
| E | Uchder llafn |
1' 6" |
458 mm |
| F | Lled esgid trac (safon) |
1' 11" |
600 mm |
| G | Mesuriadau trac |
6' 6" |
1990 mm |
| H | Chlirio tir lleiaf |
1' 5" |
425 mm |
| I | Cynffon siglen radiws |
7' 4" |
2240 mm |
| J | Darn trac |
12' 0" |
3665 mm |
| K | Darn ffyniant |
15' 1" |
4600 mm |
| L | Hyd braich (safon) |
8’ 2” |
2500 mm |
YSTOD GWEITHIO MEWN
| Safon |
Metrig |
||
| a | Palu uchafswm uchder |
28' 5" |
8685 mm |
| b | Uchder y domen |
20' 3" |
6180 mm |
| c | Palu uchafswm dyfnder |
18' 1" |
5510 mm |
| d | Dyfnder palu uchafswm wal fertigol |
15' 21" |
4890 mm |
| e | Cyrraedd uchafswm palu |
27' 2" |
8290 mm |
| f | Siglen leiaf radiws |
8' 2" |
2500 mm |
| g | Uchder mwyaf ar siglen leiaf radiws |
21' 4" |
6500 mm |
PARAMEDRAU PEIRIANT
| Gweithredu pwysau |
32,783 lb (14870 kg) |
| Injan math |
Isuzu T4 |
| Peiriant Max pŵer (Net) |
103 hp (77 kW) @ 2000rpm |
| Torque Max injan |
279 lbf-ft (378 Nm) @ 1800 rpm |
| Dadleoli injan |
183 in3 (3.0 liter) |
| Pwmp prif lif |
2x 33 gpm (2x126 lpm) |
| Cyflymder siglen |
12 rpm |
| Cyflymder teithio |
2.2/3.4 mph (3.5/5.5 km/h) |
| Ymdrech tractive |
25,403 lbf-ft (113 kN) |
| Cangen Max palu rym (ISO) |
20,840 lbf-ft (97.7 kN) |
| Nifer o rholeri uchaf |
1 |
| Nifer o rholeri is |
7 |
| Capasiti tanc tanwydd |
63.4 gal (240 liter) |
| Capasiti tanc hydrolig |
39.6 gal (150 liter) |
| Gallu'r System oeri |
5.8 gal (22 liter) |
| Capasiti olew injan |
3.5 gal (13.2 liter) |
| Sail pwysau (esgidiau 31.5"/ 800mm) |
5.6 psi (39 kPa) |
Warranty Information
12 months
