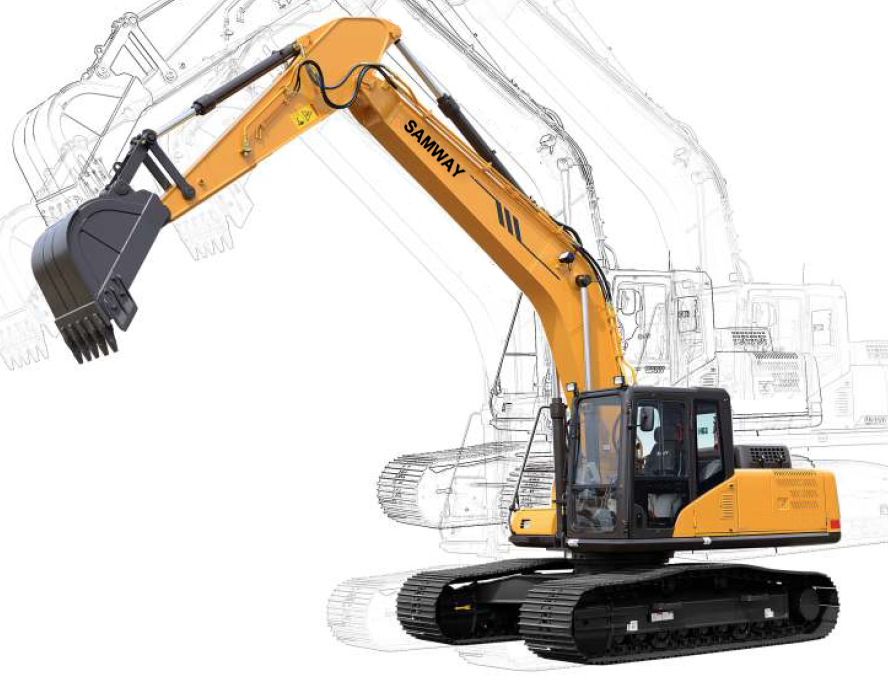

S235CLC SAMWAY Mae Jac codi baw hydrolig
Price:
sales@samway.com
SKU:
S235CLC SAMWAY Mae Jac codi baw hydrolig
Brand:
Weight:
N/A
Availability:
S235CLC SAMWAY Mae Jac codi baw hydrolig
Product Description
S235CLC SAMWAY Mae Jac codi baw hydrolig
• Peiriant: QSB Cummins 6.7, haen 3
Mae cab SAMWAY • cynllun newydd wedi gofod mwyaf, gwelededd llydan a mynediad hawdd at reolaethau gyda monitor
llawn-lliw sy'n darparu mynediad hawdd i wybodaeth gweithrediad peiriant
• System rheoli hydrolig cadarnhaol yn darparu rheolaeth ragorol a chynhyrchiantuchel
Ymhlith nodweddion safonol • Hydroleg ategol ddwyffordd a rheoli patrwm newid falf i gynyddu cynhyrchiant ac amlochredd
DIMENSIYNAU CYFFREDINOL
| Safon |
Metrig |
||
| A | Darn trafnidiaeth |
33' 2" |
10,120 mm |
| B | Lled trafnidiaeth |
11' 1" |
3390 mm |
| C | Uchder trafnidiaeth |
11' 1" |
3394 mm |
| D | Lled strwythur uchaf |
8' 11" |
2710 mm |
| E | Uchder Cyngor ar Bopeth |
10' 0" |
3050 mm |
| F | Lled esgid trac (safon) |
2' 8" |
800 mm |
| G | Mesuriadau trac |
8' 6" |
2590 mm |
| H | Chlirio tir lleiaf |
1' 7" |
480 mm |
| I | Cynffon siglen radiws |
9' 6" |
2890 mm |
| J | Darn Canolfan Idler i ddannedd y Ganolfan |
12' 7" |
3830 mm |
| K | Darn trac |
15' 2" |
4635 mm |
| K | Darn ffyniant |
19' 4" |
5900 mm |
| L | Hyd braich (safon) |
9’ 9” |
2962 mm |
YSTOD GWEITHIO MEWN
| Safon |
Metrig |
||
| a | Palu uchafswm uchder |
31' 2" |
9520 mm |
| b | Uchder y domen |
22' 1" |
6730 mm |
| c | Palu uchafswm dyfnder |
22' 2" |
6757 mm |
| d | Dyfnder palu uchafswm wal fertigol |
19' 3" |
5860 mm |
| e | Cyrraedd uchafswm palu |
33' 4" |
10,165 mm |
| f | Siglen leiaf radiws |
12' 6" |
3800 mm |
| g | Uchder mwyaf ar siglen leiaf radiws |
26' 1" |
7940 mm |
PARAMEDRAU PEIRIANT
| Gweithredu pwysau |
55,589 lb (25,215 kg) |
| Injan math |
T4 Cummins QSB6.7 terfynol |
| Max injan pŵer (gros) |
195 hp (145 kW) @ 1950 rpm |
| Torque Max injan |
687 lbf (931 Nm) @ 1400 rpm |
| Dadleoli injan |
408 in3 (6.7 liter) |
| Pwmp prif lif |
2x 67 gpm (252 lpm) |
| Cyflymder siglen |
13 rpm |
| Cyflymder teithio |
2.0/3.4 mph (3.2/5.5 km/h) |
| Ymdrech tractive |
43,836 lbf-ft (195 kN) |
| Max fraich Diggging rym (ISO) |
39,340 lbf-ft (122 kN) |
| Nifer o rholeri uchaf |
2 |
| Nifer o rholeri is |
9 |
| Capasiti tanc tanwydd |
90 gal (340 liter) |
| Capasiti tanc hydrolig |
61 gal (230 liter) |
| Gallu'r System oeri |
7.3 gal (27.6 liter) |
| Capasiti olew injan |
7.0 gal (26.4 liter) |
| Sail pwysau (esgidiau 31.5"/ 800mm) |
5.2 psi (35.7 kPa) |
Warranty Information
12 months
