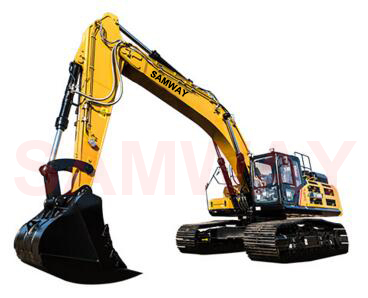

S500H SAMWAY Mae Jac codi baw hydrolig
Price:
sales@samway.com
SKU:
S500H SAMWAY Mae Jac codi baw hydrolig
Brand:
Weight:
N/A
Availability:
S500H SAMWAY Mae Jac codi baw hydrolig
Product Description
S500H SAMWAY Mae Jac codi baw hydrolig
Mae elfennau o'r radd flaenaf yn gwarantu gweithredu dibynadwy mewn amodaugwaith trwm mwyngloddio
Mae'r injan bwerus a bwced mawr gallu darparu effeithlonrwydd uchel a gweithrediad cyflym
Mae gwrthbwys allanol yn lleihau'r cyfyngiadau teithio ac yn gostwng costau cludo
Cynnal a chadw lefel y ddaear (hidlyddion)
Mae olew hir oes a hidlyddion ymestyn cylchoedd cynnal a chadw a lleihau costaugwasanaeth
Caban sydd wedi'i optimeiddio ar gyfer gwelededd ardderchog a chysur gweithredwr uchaf & diogelwch
cylchedau aux 3 (cylched pwysau uchel/llif uchel, llif isel/pwysau cylched, Cylchdaith cyflym a'r)
Mewn Canolfan Cyngor ar Bopeth cysylltiad addasiad llif hydrolig ategol botwm
Gamera farn yng nghefn
Falf rheoli newid patrwm
DIMENSIYNAU CYFFREDINOL
| Safon | Metrig |
||
| A | Darn trafnidiaeth |
39 10" |
12,157 mm |
| B | Lled trafnidiaeth |
11' 11" |
3640 mm |
| C | Uchder trafnidiaeth |
12' 4" |
3768 mm |
| D | Lled uchaf |
10' 9" |
3292 mm |
| E | Uchder Cyngor ar Bopeth |
11' 2" |
3423 mm |
| F | Lled esgid trac (safon) |
2' 11" |
900 mm |
| G | Mesuriadau trac |
8' 11" |
2740 mm |
| H | Chlirio tir lleiaf |
1' 10" |
560 mm |
| I | Cynffon siglen radiws |
12' 7" |
3850 mm |
| J | Darn Canolfan Idler i ddannedd y Ganolfan |
14' 5" |
4412 mm |
| K | Darn trac |
17' 10" |
5459 mm |
| Darn ffyniant |
22' 11" |
7000 mm |
|
| Hyd braich (safon) |
12’ 9” |
3900 mm |
YSTOD GWEITHIO MEWN
| Safon |
Metrig |
||
| a | Palu uchafswm uchder |
36' 5" |
11,112 mm |
| b | Uchder y domen |
25' 8" |
7843 mm |
| c | Palu uchafswm dyfnder |
27' 1" |
8255 mm |
| d | Cyrraedd uchafswm palu |
41' 1" |
12,537 mm |
| e | Radiws siglen uchafswm |
17' 2" |
5237 mm |
| f | Uchder gofynnol ar siglen leiaf radiws |
29' 8" |
9057 mm |
| g | Dyfnder palu uchafswm wal fertigol |
22' 0" |
6725 mm |
PARAMEDRAU PEIRIANT
| Gweithredu pwysau |
115,743 lb (52,500 kg) |
| Injan math |
T4 QSL9 Cummins terfynol |
| Max injan pŵer (gros) |
400 hp (298 kW) @ 2100rpm |
| Torque Max injan |
1501 lbf-ft (2034 Nm) @ 1400 rpm |
| Dadleoli injan |
720 in3 (11.8 liter) |
| Pwmp prif lif |
2x 95 gpm (360 lpm) |
| Cyflymder siglen |
8.0 rpm |
| Cyflymder teithio |
1.9/3.4 mph (3.1/5.4 km/h) |
| Ymdrech tractive |
75,086 lbf-ft (334 kN) |
| Max fraich Diggging rym (ISO) |
46,535 lbf-ft (207 kN) |
| Nifer o rholeri uchaf |
2 |
| Nifer o rholeri is |
9 |
| Capasiti tanc tanwydd |
180 gal (680 liter) |
| DEF tanc capasiti |
14.7 gal (56 liter) |
| Capasiti tanc hydrolig |
127 gal (480 liter) |
| Gallu'r System oeri |
13.0 gal (50 liter) |
| Capasiti olew injan |
9.0 gal (33 liter) |
| Sail pwysau (esgidiau 31.5"/ 800mm) |
8.6 psi (59 kPa) |
Warranty Information
12 months
