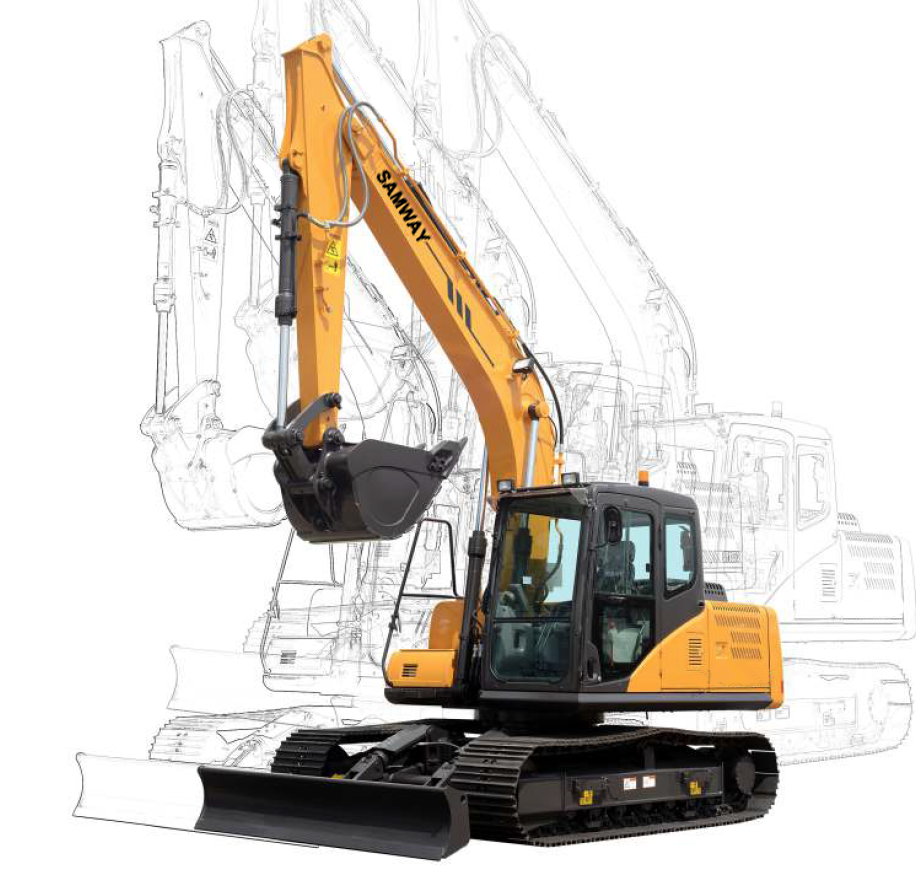

SAMWAY S135C Hydraulic Excavator
Price:
sales@samway.com
SKU:
SAMWAY S135C Hydraulic Excavator
Brand:
Weight:
N/A
Availability:
SAMWAY S135C Hydraulic Excavator
Product Description
SAMWAY S135C Hydraulic Excavator
• Engine: Isuzu AJ-4JJ1X, Tier 3
• New design increases efficiency and productivity while reducing fuel consumption
• Four standard work modes for differing job-site conditions
• Redesigned chassis for excellent stability
• Standard features include two-way hydraulics, backfill blade and a pattern-control change valve to increase productivity and versatility
OVERALL DIMENSIONS
| Standard |
Metric |
||
| A | Transport Length |
25' 3" |
7700 mm |
| B | Transport Width |
8' 8" |
2650 mm |
| C | Transport Height |
9' 3" |
2815 mm |
| D | Upper Structure Width |
8' 2" |
2490 mm |
| E | Blade Height |
1' 6" |
458 mm |
| F | Track Shoe Width (standard) |
1' 11" |
600 mm |
| G | Track Gauge |
6' 6" |
1990 mm |
| H | Minimum Ground Clearance |
1' 5" |
425 mm |
| I | Tail Swing Radius |
7' 4" |
2240 mm |
| J | Track Length |
12' 0" |
3665 mm |
| K | Boom Length |
15' 1" |
4600 mm |
| L | Arm Length (standard) |
8’ 2” |
2500 mm |
WORKING RANGE
| Standard |
Metric |
||
| a | Maximum Digging Height |
28' 5" |
8685 mm |
| b | Maximum Dumping Height |
20' 3" |
6180 mm |
| c | Maximum Digging Depth |
18' 1" |
5510 mm |
| d | Maximum Vertical Wall Digging Depth |
15' 21" |
4890 mm |
| e | Maximum Digging Reach |
27' 2" |
8290 mm |
| f | Minimum Swing Radius |
8' 2" |
2500 mm |
| g | Maximum Height at Minimum Swing Radius |
21' 4" |
6500 mm |
MACHINE PARAMETERS
| Operating Weight |
32,783 lb (14870 kg) |
| Engine Type |
Isuzu T4 |
| Engine Max Power (Net) |
103 hp (77 kW) @ 2000rpm |
| Engine Max Torque |
279 lbf-ft (378 Nm) @ 1800 rpm |
| Engine Displacement |
183 in3 (3.0 liter) |
| Main Pump Flow |
2x 33 gpm (2x126 lpm) |
| Swing Speed |
12 rpm |
| Travel Speed |
2.2/3.4 mph (3.5/5.5 km/h) |
| Tractive Effort |
25,403 lbf-ft (113 kN) |
| Max Arm Digging Force (ISO) |
20,840 lbf-ft (97.7 kN) |
| Number of Upper Rollers |
1 |
| Number of Lower Rollers |
7 |
| Fuel Tank Capacity |
63.4 gal (240 liter) |
| Hydraulic Tank Capacity |
39.6 gal (150 liter) |
| Cooling System Capacity |
5.8 gal (22 liter) |
| Engine Oil Capacity |
3.5 gal (13.2 liter) |
| Ground Pressure (31.5”/800mm shoes) |
5.6 psi (39 kPa) |
Warranty Information
12 months
