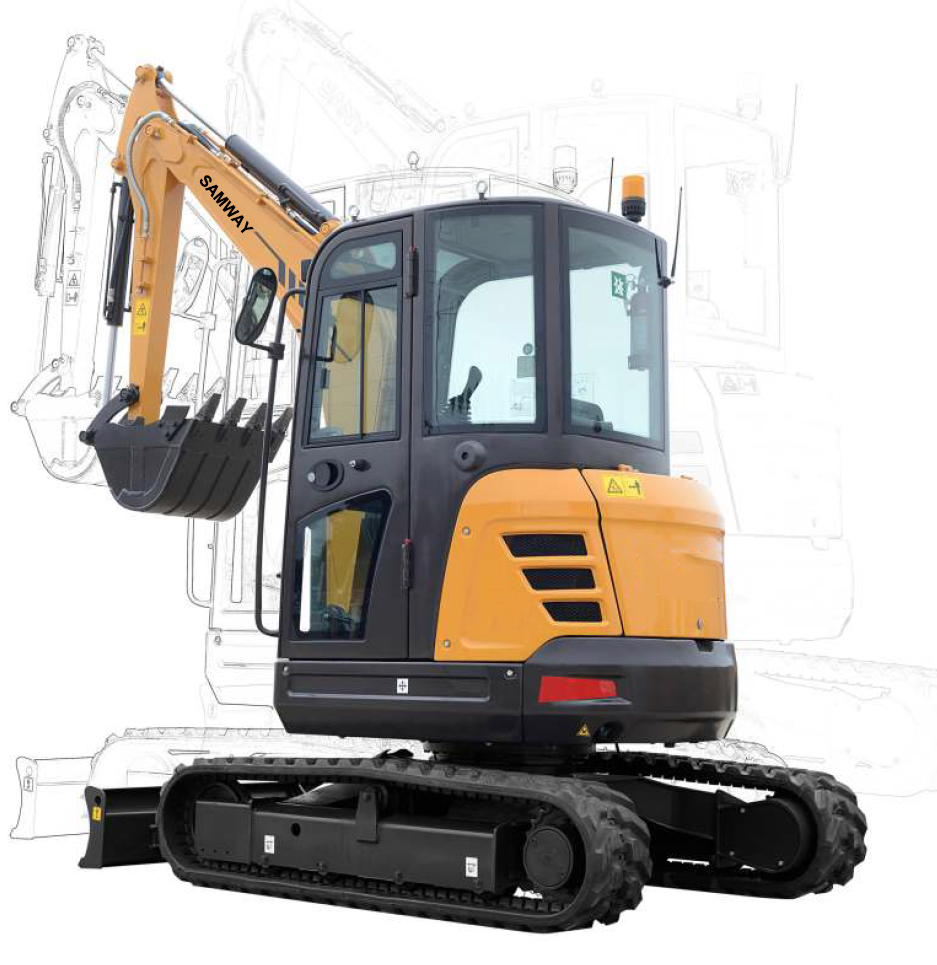

SAMWAY S35U Hydraulic Excavator
Price:
sales@samway.com
SKU:
SAMWAY S35U Hydraulic Excavator
Brand:
Weight:
N/A
Availability:
SAMWAY S35U Hydraulic Excavator
Product Description
SAMWAY S35U Hydraulic Excavator
• Engine: Yanmar 3TNV88-BDSA, Tier 4f
• Zero tail swing is ideal for tight job sites and working in confined spaces
• Lines are run down the boom and arm as standard equipment for east fit-up and running of hydraulic attachments
• Enclosed cab with air conditioning standard for operator comfort
• Load sensing hydraulics for increased fuel efficiency and maximized performance
• Two-speed travel
OVERALL DIMENSIONS
| Standard |
Metric |
||
| A | Transport Length |
16' 2" |
4915 mm |
| B | Transport Width |
5’ 8” |
1720 mm |
| C | Transport Height |
8' 3" |
2515 mm |
| D | Blade Height |
1' 2" |
350 mm |
| E | Track Width (standard) |
1' 0" |
300 mm |
| F | Track Gauge |
4' 8" |
1420 mm |
| G | Minimum Ground Clearance |
1' 0" |
295 mm |
| H | Tail Swing Radius |
2' 10" |
860 mm |
| I | Track Ground Length |
5' 6" |
1670 mm |
| J | Track Length |
7’ 1” |
2155 mm |
| K | Boom Length |
8' 4" |
2540 mm |
| L | Arm Length (standard) |
4' 7" |
1400 mm |
WORKING RANGE
| Standard |
Metric |
||
| a | Maximum Digging Height |
15' 11" |
4855 mm |
| b | Maximum Dumping Height |
11' 4" |
3460 mm |
| c | Maximum Digging Depth |
10' 2" |
3105 mm |
| d | Maximum Vertical Wall Digging Depth |
8' 10" |
2700 mm |
| e | Maximum Digging Reach |
17' 11" |
5465 mm |
| f | Minimum Swing Radius |
8' 1" |
2475 mm |
| g | Maximum Height at Minimum Swing Radius |
12' 1" |
3685 mm |
MACHINE PARAMETERS
| Operating Weight |
8,500 lb (3855 kg) |
| Engine Type |
Yanmar Tier 4 final |
| Engine Max Power (Net) |
24.4 hp (18.2 kW) @ 2200rpm |
| Engine Max Torque |
69.3 lbf-ft (94 Nm) @ 1320 rpm |
| Engine Displacement |
98 in3 (1.6 liter) |
| Main Pump Flow |
23 gpm (88 lpm) |
| Swing Speed |
9 rpm |
| Travel Speed |
1.5/2.7 mph (2.4/4.4 km/h) |
| Tractive Effort |
8,273 lbf (36.8 kN) |
| Max Arm Digging Force (ISO) |
4,092 lbf (18.2 kN) |
| Number of Upper Rollers |
1 |
| Number of Lower Rollers |
4 |
| Fuel Tank Capacity |
10.6 gal (40 liter) |
| Hydraulic Tank Capacity |
10.6 gal (40 liter |
| Cooling System Capacity |
1.7 gal (6.5 liter) |
| Engine Oil Capacity |
1.8 gal (6.7 liter |
| Ground Pressure (with standard shoes) |
4.6 psi (32 kPa) |
Warranty Information
12 months
