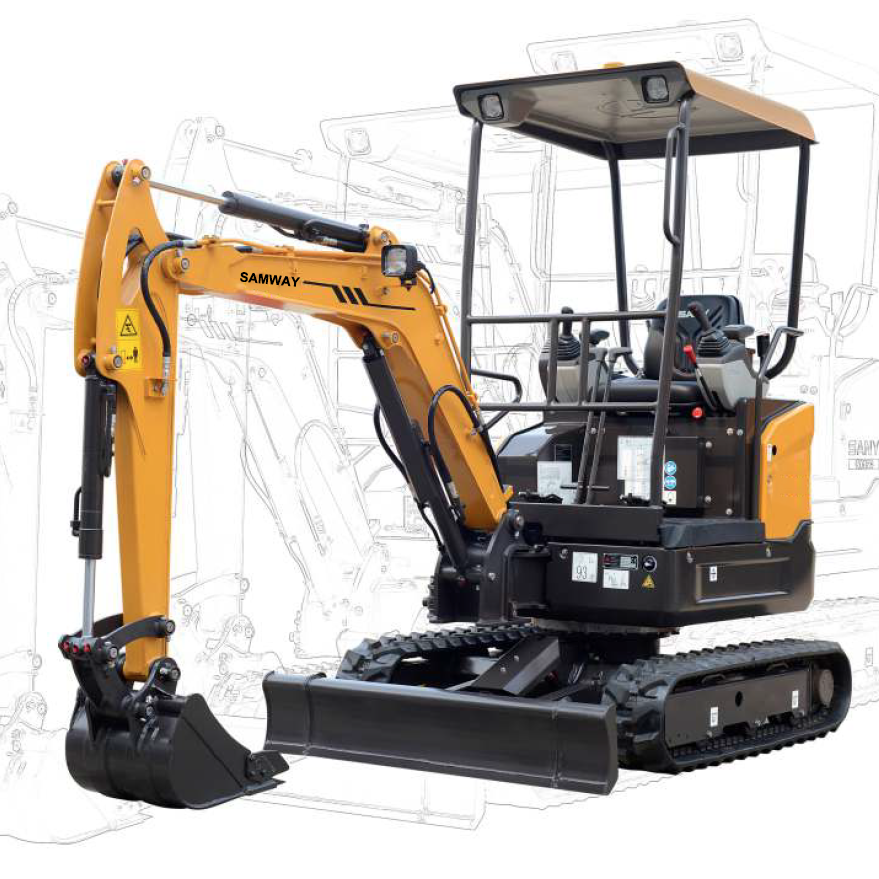

SAMWAY S16C Hydraulic Excavator
Price:
sales@samway.com
SKU:
SAMWAY S16C Hydraulic Excavator
Brand:
Weight:
N/A
Availability:
SAMWAY S16C Hydraulic Excavator
Product Description
SAMWAY S16C Hydraulic Excavator
• Engine: Yanmar 3TNV74F, Tier 4f
• Convenient service points for easy maintenance.
• Short tail swing is ideal for tight job sites and working in confined spaces
• Lines are run down the boom and arm as standard equipment for easy fit-up and running of hydraulic attachments
• Load sensing hydraulics for increased fuel efficiency and maximized performance
• Hydraulically extendable undercarriage with adjustable front blade width standard
• Two-speed travel
OVERALL DIMENSIONS
| Standard | Metric | ||
| A | Transport Length | 11' 7" | 3575 mm |
| B | Transport Width | 3' 2" / 4’ 5” | 980 / 1350 mm |
| C | Transport Height | 7' 11" | 2420 mm |
| D | Top Width | 6' 2" | 980 mm |
| E | Platform Height | 1' 6" | 470 mm |
| F | Engine Cover Height | 4' 2" | 1280 mm |
| G | Tail Swing Radius | 3' 0" | 920 mm |
| H | Track Ground Length | 4' 0" | 1225 mm |
| I | Track Length | 5' 2" | 1585 mm |
| J | Track Gauge | 2’ 5” / 3’ 8” | 750 / 1120 mm |
| K | Standard Track Shoe Width | 0' 10" | 230 mm |
| L | Dozer Blade Height | 0' 11" | 270 mm |
| M | Dozer Blade Max. Height | 1’ 0” | 310 mm |
| N | Dozer Blade Max Depth | 1’ 0” | 320 mm |
WORKING RANGE
| Standard | Metric | ||
| a | Maximum Digging Height | 12' 3" | 3665 mm |
| b | Maximum Dumping Height | 8' 8" | 2635 mm |
| c | Maximum Digging Depth | 7' 9" | 2360 mm |
| d | Maximum Vertical Wall Digging Depth | 7' 3" | 2215 mm |
| e | Maximum Digging Reach | 13' 1" | 4000 mm |
| f | Minimum Swing Radius | 5' 5" | 1655 mm |
| g | Maximum Height at Minimum Swing Radius | 9' 1" | 2745 mm |
MACHINE PARAMETERS
| Operating Weight | 4,023 lb (1825 kg) |
| Engine Type | Yanmar Tier 4 final |
| Engine Max Power (Gross) | 15.0 hp (11.2 kW) @ 2400 rpm |
| Engine Max Torque | 38.2 lbf-ft (51.8 Nm) @ 1800 rpm |
| Engine Displacement | 60.6 in3 (0.993 liter) |
| Main Pump Flow | 12.7 gpm (48 lpm) |
| Swing Speed | 10 rpm |
| Travel Speed | 1.3/2.1 mph (2.1/3.7 km/h) |
| Tractive Effort | 3,507 lbf (15.6 kN) |
| Max Arm Digging Force (SAE) | 2,068 lbf (9.2 kN) |
| Number of Upper Rollers | 2 |
| Number of Lower Rollers | 3 |
| Fuel Tank Capacity | 6.1 gal (23 liter) |
| Hydraulic Tank Capacity | 5.5 gal (21 liter) |
| Cooling System Capacity | 1.0 gal (3.8 liter) |
| Engine Oil Capacity | 0.5 gal (2.0 liter) |
| Ground Pressure (31.5”/800mm shoes) | 4.2 psi (29 kPa) |
Warranty Information
12 months
