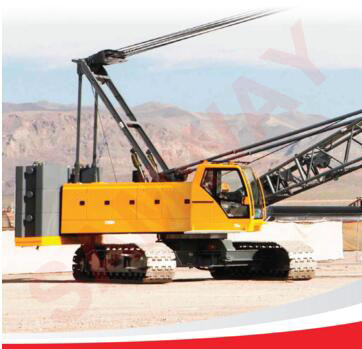

SAMWAY SCC8100 mtambaa Crane

Home
Crawler Cranes
SAMWAY SCC8100 mtambaa Crane

SAMWAY SCC8100 mtambaa Crane

Price:

sales@samway.com

SKU:

SAMWAY SCC8100 mtambaa Crane

Brand:

Samway

Weight:

N/A

Availability:

SAMWAY SCC8100 mtambaa Crane

Product Description

SAMWAY SCC8100 mtambaa Crane

• Injini: Cummins QSC8.3, hp 245 @ 2000 rpm

• Hydrauliska mfumo: pampu ya Rexroth na kiendeshi motors

• LMI iliyoundwa na SAMWAY na onyesho kubwa kiwamba

• Extendable nyimbo

• Mbili mazungumzo inapatikana: kuu Boom na jibu fasta

• Kuu boom inapatikana katika ujenzi Tubular na pembe

MAKALA MUHIMU

Uwezo juu @ eneo	110 U.S. T @ 12.5 ft
Boom kuu	3,6 & 9 Meter Sections 42 ft 8 in. – 219 ft 10 in.
Urefu wa ncha ya Max (H kuu Boom)	223 ft
Jibu fasta urefu	29 ft 6 in. – 59 ft 1 in.
Winch kuu - lilipimwa mvuto wa mstari	20,944 lb
Kipenyo cha kamba ya waya	24 mm
Uzito Mashine msingi (bila muafaka wa kufuatilia & na Boom kitako)	99,206 lb
Jumla Counterweight (mfululizo 2)	82,450 lb
Urefu Mashine ya msingi - usafiri (na njia muafaka & Boom kitako)	43 ft 4 in.
Urefu Mashine ya msingi - usafiri (na njia muafaka & Boom kitako)	11 ft 5 in.
Upana Mashine ya msingi - usafiri (na njia muafaka & Boom kitako)	11 ft 4 in.
Swing ya mkia	16 ft 5 in

VIPIMO YA USAFIRI

	MASHINE ya msingi (na kufuatilia Frame)
	Urefu	43'4"
	Upana	11'4"
	Urefu	11'5"
	Uzito	99206 lb

	MASHINE ya msingi (bila kufuatilia fremu)
	Urefu	26'2"
	Upana	11'
	Višina	10'
	Uzito	55115 lb

	FREMU YA KUFUATILIA
	Urefu	20'8"
	Upana	3'7"
	Urefu	3'11"
	Uzito	20944 lb

	MSINGI WA USTAWI
	Urefu	22'1"
	Upana	5'3"
	Urefu	7'2"
	Uzito neli Boom	3726 lb
	Uzito neli Boom w / ngoma tatu	7523 lb
	Uzito Angle Boom	3748 lb

	NCHA YA USTAWI
	Urefu	23'4"
	Upana	5'3"
	Urefu	5'9"
	Uzito neli Boom	3241 lb
	Uzito Angle Boom	3190 lb

	BOOM CHOMEKA 9'10 "(3m)
	Urefu	10'4"
	Upana	5'6"
	Urefu	5'5"
	Uzito neli Boom	1014 lb
	Uzito Angle Boom	1378 lb

	CHOMEKA BOOM 19'8 "(mita 6)
	Urefu	20'2"
	Upana	5'3"
	Urefu	5'5"
	Uzito neli Boom	1631 lb
	Uzito Angle Boom	2173 lb

	CHOMEKA BOOM 29'6 "(mita 9) No. 1
	Urefu	30'
	Upana	5'3"
	Urefu	5'5"
	Uzito neli Boom	2072 lb
	Uzito Angle Boom	3057 lb

	CHOMEKA BOOM 29'6 "(mita 9) No. 2
	Urefu	30'
	Upana	5'3"
	Urefu	5'5"
	Uzito neli Boom	2072 lb
	* Haipatikani katika Angle Boom

	FASTA jibu NCHA 14'9 "(4.5 m)
	Urefu	16'
	Upana	2'10"
	Urefu	2'6"
	Uzito	728 lb

	FASTA jibu msingi 14'9 "(4.5 m)
	Urefu	15'6"
	Upana	2'11"
	Urefu	2'6"
	Uzito	661 lb

	FASTA jibu CHOMEKA 14'9 "(4.5 m)
	Urefu	15'
	Upana	2'10"
	Urefu	2'6"
	Uzito	507 lb

	JUU BOOM POINTI
	Urefu	6'2"
	Upana	2'5"
	Urefu	2'1"
	Uzito neli Boom	375 lb
	Uzito Angle Boom	375 lb

	MTAMBAA UPANDE COUNTERWEIGHT
	Urefu	12'5"
	Upana	1'3"
	Urefu	2'5"
	Uzito	11023 lb

	TREI YA COUNTERWEIGHT YA UPPERWORKS
	Urefu	14'1"
	Upana	5'3"
	Urefu	2'
	Uzito	22046 lb

	UMBO LA COUNTERWEIGHT
	Urefu	4'6"
	Upana	3'7"
	Urefu	2'7"
	Uzito	6393 lb

	NDOANO kuzuia 110 USt (100 Mt)
	Urefu	7'4"
	Upana	2'11"
	Urefu	2'9"
	Uzito	5357 lb

	NDOANO kuzuia 88 USt (80 Mt)
	Urefu	6'10"
	Upana	2'9"
	Urefu	2'6"
	Uzito	3197 lb

	NDOANO kuzuia 55 USt (50 Mt)
	Urefu	6'6"
	Upana	2'9"
	Urefu	1'7"
	Uzito	2205 lb

	NDOANO kuzuia 27.5 USt (25 Mt)
	Urefu	5'10"
	Upana	2'11"
	Urefu	1'2"
	Uzito	1235 lb

	NDOANO MPIRA 10 USt (9 Mt)
	Urefu	3'1"
	Upana	1'2"
	Urefu	1'2"
	Uzito	750 lb
MAELEZO: Vipimo 1. usafiri wa sehemu alama kwenye michoro schematic, lakini si inayotolewa kwa wadogo; Vipimo ilionesha ni thamani ya kubuni ukiondoa mfuko. 2. uzito ni thamani ya kubuni na kunaweza kuwa na tofauti kutokana na kosa la viwanda.
