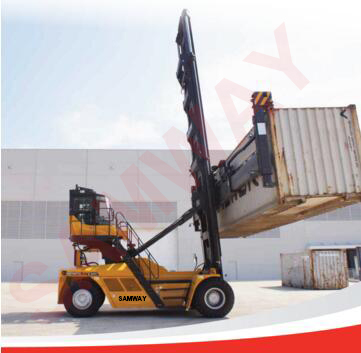

SAMWAY SDCY90K8H4 thawv tas Handler

Price:

sales@samway.com

SKU:

Brand:

Samway

Weight:

N/A

Availability:

SAMWAY SDCY90K8H4 thawv tas Handler

SAMWAY SDCY90K8H4 thawv tas Handler

• Cummins cav

• 20' – 40' tseev tsim ntiaj teb txheem kom

• Fais fab-kev-kom thiaj li coj, noj roj thiab

Tej yam yuav •Environmental

• Siv tshuab proprietary tsub kom muaj kev cia siab rau, EasesTroubleshooting thiab pab txoj kev Stability thiab tuav

• Anti-Jamming tswb Technology

ZUAG QHIA TAG NRHO COV QHOV NTEV

Zuag qhia tag nrho ntev	22’8”	6900 mm
Zuag qhia tag nrho cov qhov siab	15’7”	12,315 mm
Wheelbase	14’9”	4550 mm
Load chaw	4’	1220 mm
Kom siab li mast nws txo qis / txuas	40’5”/71’4”	12,315 mm/21,740 mm
Min. av clearance	1’1”	320 mm
Min. lifting qhov siab nyob rau hauv spreader	7’3”	2250 mm
Max. lifting qhov siab nyob rau hauv spreader	69’9”	21,250 mm
Zuag qhia tag nrho kev dav	19’10” - 39’11”	6,038 mm ~12,170 mm
Pem hauv ntej log dav	10’9”	3280 mm
Tsheb log dav	7’1”	2150 mm
Mast qaij pem / rov qab	2°/4°
Voos kheej-kheej raws min.	19’8”	6000 mm
Min. kem dav rau 20' thawv	32’10”	10,000 mm
Min. kem dav rau 40' thawv	45’11”	14,000 mm

TSIS CAV

Cav	Chaw tsim tshuaj paus / xyaum	CUMMINS QSB 6.7
		Txuj	Metric
	Nyob tso zis ntau zog	225hp	168/2200 kW/rpm
	Torque - max	770 ft-lbs	1044/1500 Nm/rpm
	EPA tier cai	Tier 4 final

Cov chaw tsim tshuaj paus kis / xyaum		CLARK 13.7HR32000
Tsav chaw tsim tshuaj paus qag / xyaum		KESSLER D81 PL488

Spreader	Chaw tsim tshuaj paus / xyaum	SDJ90H
	Ntau yam ua haujlwm sab	24”	±600 mm
	Daim ntawv	20'/40' container

Raws li cov log tsheb		14.00-24 28PR
Ceeb thawj Pab		88,185 lbs	41 t
Cov movies load tau		19,842 lbs	9 t
Qhov siab stacking		8 (8'6") / 7 (9'6")
Lifting ceev (tsis load / nrog load)		24”/22” per second	600/550 mm/s
Tej kev ceev (tsis load / nrog load)		22”/24” per second	550/600 mm/s
Taug kev ceev (tsis load / nrog load)		17.4/16 mph	28/26 km/ht
Gradeability (tsis load / nrog load)		30/22%	30/22%
