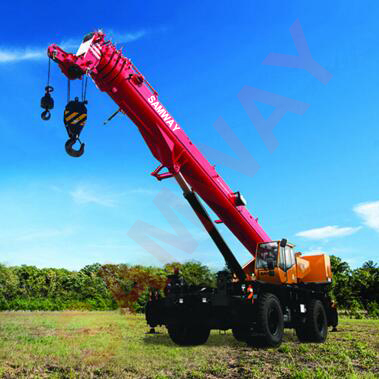

SAMWAY SRC8130 Rough Terrain Crane

SAMWAY SRC8130 Rough Terrain Crane

• Equipped with a U shaped, 5 section boom. Fully extended length is 161 ft. The boom telescope system has a double cylinder with rope mechanism.

The 2-section folding jibs fully extended length is 59ft, an industry leader.

• With a gross weight of 77t, the machine has self-assembly/disassembly technology.

The auxiliary hoist, counterweight and front/rear outrigger boxes can be removed for transport.

This reduces the transport weight to approximately 52.5t, which meets trans

• With the output power at 321hp, the T4F U.S. Cummins engine features strength and economy.

• The fully electronic control system provides an operator friendly interface, precise function movement and convenient troubleshooting.

MACHINE PARAMETERS

	Standard	Metric
Outrigger span (vertical x longitude)	28’ x 27’11”	8.54 m x 8.52 m
Engine model	Cummins QSL9
Rated power of engine	320 hp/rpm	239 kw/2200 rpm
Rated torque of engine	1050 ft lbs	1424 N.m/1500 rpm
Emission standard	T4F
Max. traveling speed	15.5 mph	25 km/h
Overall mass	169,791 lbs	77,016 kg
Front axle load	84,219 lbs	38,201 kg
Rear axle load	85,572 lbs	38,815 kg
Min. turning radius (4 wheels)	31'10"	9.7 m
Min. ground clearance	20"	510 mm
Approach angle	19°
Departure angle	15°
Braking distance (12 mph)	21’4”	6.5 m
Fuel consumption	3.6 mpg	65 L/100 km
Max. lifting speed of single rope of main winch (empty load)	442 ft/min	135 m/min
Max. lifting speed of single rope of auxiliary winch (empty load)	410 ft/min	125 m/min
Full extension/retraction time of boom	160 sec/175 sec
Luffing time of boom	67 sec
Max. slewing speed	1.78 rpm
Full extension/retraction time of outrigger	20 sec/25 sec
Fully lifting/descending time of outrigger	30 sec/45 sec
Maximum rated lifting capacity	130 T	118 mt
Minimum rated reach	10’	3.05 m
