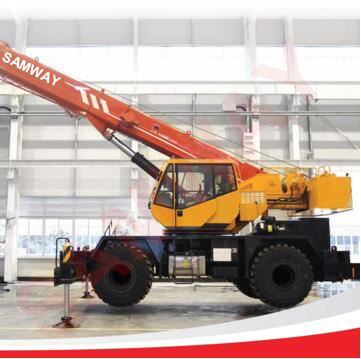

SAMWAY SRC840 Rough Terrain Crane

Price:

sales@samway.com

SKU:

Brand:

Samway

Weight:

N/A

Availability:

SAMWAY SRC840 Rough Terrain Crane

SAMWAY SRC840 Rough Terrain Crane

• Engine: Cummins Model QSB6.7 160 HP @ 2500 rpm

• Hydraulic system: Parker piston pump and Husco valves

• Braden winches

• SAMWAY designed LML with large display screen

• AxleTech axles and Dana Powershift transmission

• 103 ft, Four Section Main Boom and 26’ – 45’ Extension

MACHINE PARAMETERS

	Standard	Metric
Outrigger span (center to center)	20.1 ft.	6150mm
Engine model	Cummins QSB6.7
Rated power of engine	160 hp/2500 rpm	119kw
Rated torque of engine	540 lbf.ft/1500 rpm	732 Nm
Emission standard	Emission standard Tier 3
Max. traveling speed	25 mph	40 kpm
Overall mass	71,209 lb	32,300 kg
Front axle load	36,685 lb	16,640 kg
Rear axle load	34,524 lb	15,660 kg
Min. turning radius (2 wheels/4 wheels)	40.0 ft/20.3 ft	12.2m/6.2m
Min. ground clearance	16”	400 mm
Approach angle	23.9°
Departure angle	23.3°
Braking distance (15 mph)	29.2 ft	8.9m
Fuel consumption	4.3 mpg	55L/100 km
Max. lifting speed of single rope of main winch (empty load)	459 ft/min	140 m/min
Max. lifting speed of single rope of auxiliary winch	459 ft/min	140 m/min
Full extension/retraction time of boom	55 sec/39 sec
Luffing time of boom	43 sec/57 sec
Max. slewing speed	2.7 rpm
Full extension/retraction time of outrigger	31 sec/31 sec
Fully lifting/descending time of outrigger	25 sec/25 sec
Maximum rated lifting capacity	40 T	36 mT
Minimum rated reach	10.0 ft	3.5 m
Base boom	840 ft kips	1139 kNm
Fully extended boom	548 ft kips	743 kNm
Fully extended boom + jib	414 ft kips	652 kNm
Lifting height - Maximum tip height	155.5 ft	47 m
Base boom	42.3 ft	12.9 m
Fully extended boom	111.2 ft	33.9 m
Fully extended boom + jib	155.5 ft	47.4 m
Boom length	103.4 ft	31.5 m
Fitting angle of jib	0°\15°\30°
