Product Description

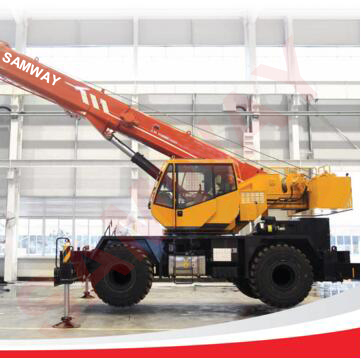

SAMWAY SRC840 ntxhib struts Crane

 Cov cav: Cummins HP qauv QSB6.7 160 @ 2500 rpm
 Kaw lus hydraulic: Parker piston twj thiab Husco li qub
 Braden winches
 Tsim SAMWAY hlub nyob kuv tau tshuaj ntsuam muaj zaub ntau heev
 AxleTech axles thiab kev sib Dana Powershift
 103 ft, 4 nqe ntsiab Boom thiab 26'  45' Extension

TSIS CAV

  Txuj
Metric
Outrigger luv (qhov chaw rau qhov chaw)
20.1 ft. 6150mm
Cav qauv Cummins
Cummins QSB6.7
Cov movies zog cav
160 hp/2500 rpm 119kw
Cov movies torque cov cav
540 lbf.ft/1500 rpm 732 Nm
Emission txheem
Emission txheem Tier 3
Max. txawv tebchaws ceev
25 mph 40 kpm
Zuag qhia tag nrho tej pawg
71,209 lb 32,300 kg
Load qag pem hauv ntej
36,685 lb 16,640 kg
Tsheb qag load
34,524 lb 15,660 kg
Voos kheej-kheej raws min. (2 log/4 log)
40.0 ft/20.3 ft 12.2m/6.2m
Min. av clearance
16” 400 mm
Mus kom ze lub
23.9°
Lub sij
23.3°
Braking nyob deb li cas (15 mph)
29.2 ft 8.9m
Noj roj

Maxlifting ceev cov hlua ib qho uas tseem ceeb winch (khoob load)
459 ft/min 140 m/min
Max. lifting ceev ntawm tib hlua ntawm ntu winch
459 ft/min 140 m/min
Lub sij hawm tag nrho extension/retraction cov boom
55 sec/39 sec

Lub sij hawm ntawm boom luffing

43 sec/57 sec
Max. slewing ceev
2.7 rpm
Lub sij hawm tag nrho extension/retraction ntawm outrigger
31 sec/31 sec
Siab lifting/nqis lub sij hawm ntawm outrigger
25 sec/25 sec
Siab kawg nyob lifting tau
40 T 36 mT
Yam tsawg kawg cuag cov movies
10.0 ft 3.5 m
Luj boom
840 ft kips 1139 kNm
Kev siab boom
548 ft kips 743 kNm
Ncua ntev nkaus boom + jib
414 ft kips 652 kNm
Lifting qhov siab - qhov hau siab tshaj plaws
155.5 ft 47 m
Luj boom
42.3 ft 12.9 m
Kev siab boom
111.2 ft 33.9 m
Ncua ntev nkaus boom + jib
155.5 ft 47.4 m
Ntev boom
103.4 ft 31.5 m
Li. lub kaum ntse ntse jib
0°\15°\30°










Warranty Information

12 months
