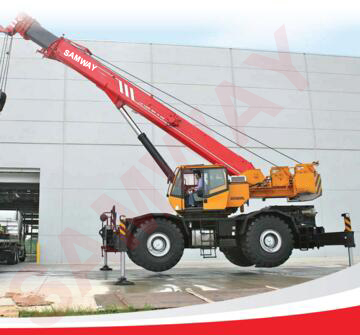

SAMWAY SRC865XL Rough Terrain Crane

SAMWAY SRC865XL Rough Terrain Crane

• Engine: Cummins Model QSB6.7 250 HP @ 2500 rpm

• Hydraulic system: Parker Piston Pumps and Husco Valves

• Braiden Winches

• SAMWAY designed LML with large display screen

• AxleTech Axles and Dana Powershift Transmission

• 139.4 Foot Five Section Main Boom and 30.2' – 52.5' Extension

MACHINE PARAMETERS

	Standard	Metric
Outrigger span (center to center)	23.6 ft	7200 mm
Engine mode	Cummins QSB6.7
Rated power of engine	250 hp/2500 rpm	186 kw/2500 rpm
Rated torque of engine	728 lb-ft/1500 rpm	987 N.m/1500 rpm
Emission standard	Tier 3
Max. traveling speed	24.9 mph	40 km/h
Overall mass	91,164 lb	44,980 kg
Front axle load	54,675 lb	24,800 kg
Rear axle load	44,489 lb	20,180 kg
Min. turning radius (2 wheels/4 wheels)	40.4 ft/22.0 ft	12.3 m/6.7 m
Min. ground clearance	1.1 ft	350 mm
Approach angle	23°
Departure angle	20°
Braking distance (12 mph)	21.3 ft	6.5 m
Fuel consumption	3.6 mpg	65 L/100 km
Max. lifting speed of single rope of main winch (empty load)	492 ft/min	150 m/min
Max. lifting speed of single rope of auxiliary winch (empty load)	492 ft/min	150 m/min
Full extension/retraction time of boom	120 sec/100 sec
Luffing time of boom	75 sec/55 sec
Max. slewing speed	2.5 rpm
Full extension/retraction time of outrigger	35 sec/30 sec
Fully lifting/descending time of outrigger	40 sec/35 sec
Maximum rated lifting capacity	65 T	59 mt
Minimum rated reach	9.8 ft	3.0 m
