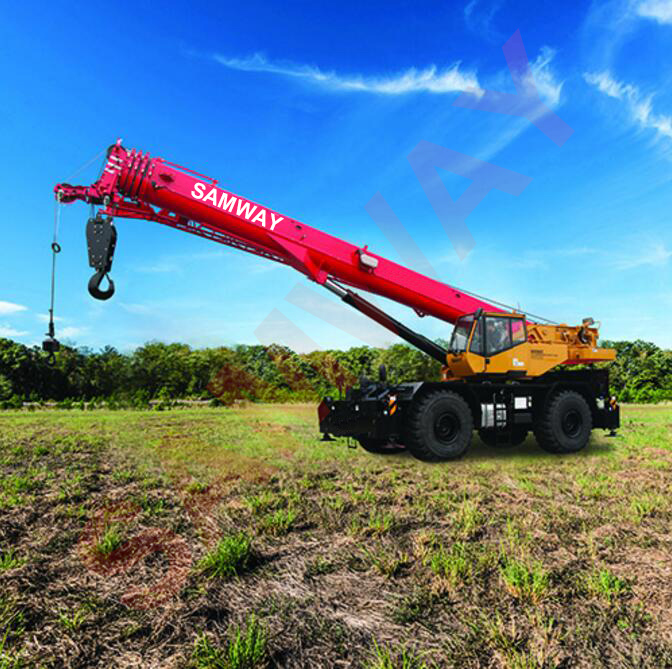

SAMWAY SRC885 Rough Terrain Crane

SAMWAY SRC885 Rough Terrain Crane

• Engine: Cummins Model QSB6.7 275 HP @ 2500 rpm

• Hydraulic system Parker piston pumps and Husco valves

• SAMWAY designed LML with large display screen

• AxleTech axles and Dana Powershift transmission

• 147.6 ft., five section main boom and 30.2 ft – 52.5 ft extension

MACHINE PARAMETERS

	Standard	Metric
Outrigger span (vertical x longitude)	24’8” x 24’3”	7.52 m x 7.4 m
Engine model	Cummins QSL6.7
Rated power of engine	275 hp/rpm	205 kw/2500 rpm
Rated torque of engine	730 ft lbs	990 N.m/1500 rpm
Emission standard	T4F
Max. traveling speed	22 mph	35 km/h
Overall mass	122,908 lbs	55,750 kg
Front shaft load	60,848 lbs	27,600 kg
Rear shaft load	62,060 lbs	28,150 kg
Min. turning radius (4 wheels)	24'7"	7.5 m
Min. ground clearance	18"	450 mm
Approach angle	20°
Departure angle	9°
Max. lifting speed of single rope of main winch (empty load)	459 ft/min	140 m/min
Max. lifting speed of single rope of auxiliary winch (empty load)	459 ft/min	140 m/min
Full extension/retraction time of boom	125 sec/160 sec
Luffing time of boom (20° to 60°)	65 sec
Max. slewing speed	1.8 rpm
Full extension/retraction time of outrigger	25 sec/20 sec
Fully lifting/descending time of outrigger	35 sec/30 sec
Maximum rated lifting capacity	85 T	77 mt
Minimum rated reach	10’	3.05 m
