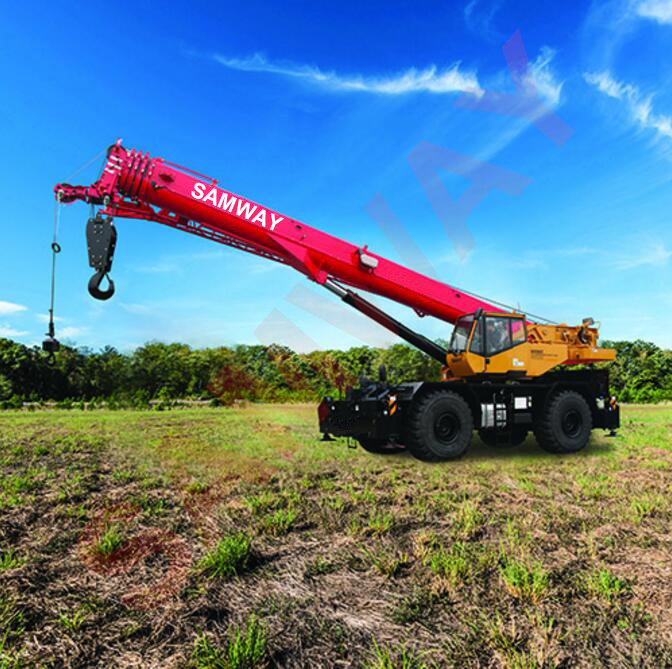

SAMWAY SRC885 ntxhib struts Crane
TSIS CAV
Txuj | Metric |
|
Outrigger luv (ntsug x longitude) |
24’8” x 24’3” | 7.52 m x 7.4 m |
Qauv cav |
Cummins QSL6.7 | |
Cov movies zog cav |
275 hp/rpm | 205 kw/2500 rpm |
Cov movies torque cov cav |
730 ft lbs | 990 N.m/1500 rpm |
Emission txheem |
T4F | |
Max. txawv tebchaws ceev |
22 mph | 35 km/h |
Zuag qhia tag nrho tej pawg |
122,908 lbs | 55,750 kg |
Load ncej qab |
60,848 lbs | 27,600 kg |
Tsheb ncej load |
62,060 lbs | 28,150 kg |
Voos kheej-kheej raws min. (log 4) |
24'7" | 7.5 m |
Min. av clearance |
18" | 450 mm |
Mus kom ze lub |
20° | |
Lub sij |
9° | |
Max. lifting ceev cov hlua ib qho uas tseem ceeb winch (khoob load) |
459 ft/min | 140 m/min |
Max. lifting ceev ntawm tib hlua ntawm ntu winch (khoob load) | 459 ft/min | 140 m/min |
Lub sij hawm tag nrho extension/retraction cov boom |
125 sec/160 sec | |
Luffing sij hawm boom (20° rau 60°) |
65 sec | |
Max. slewing ceev |
1.8 rpm | |
Lub sij hawm tag nrho extension/retraction ntawm outrigger |
25 sec/20 sec | |
Siab lifting/nqis lub sij hawm ntawm outrigger |
35 sec/30 sec | |
Siab kawg nyob lifting tau |
85 T | 77 mt |
Yam tsawg kawg cuag cov movies |
10’ | 3.05 m |
